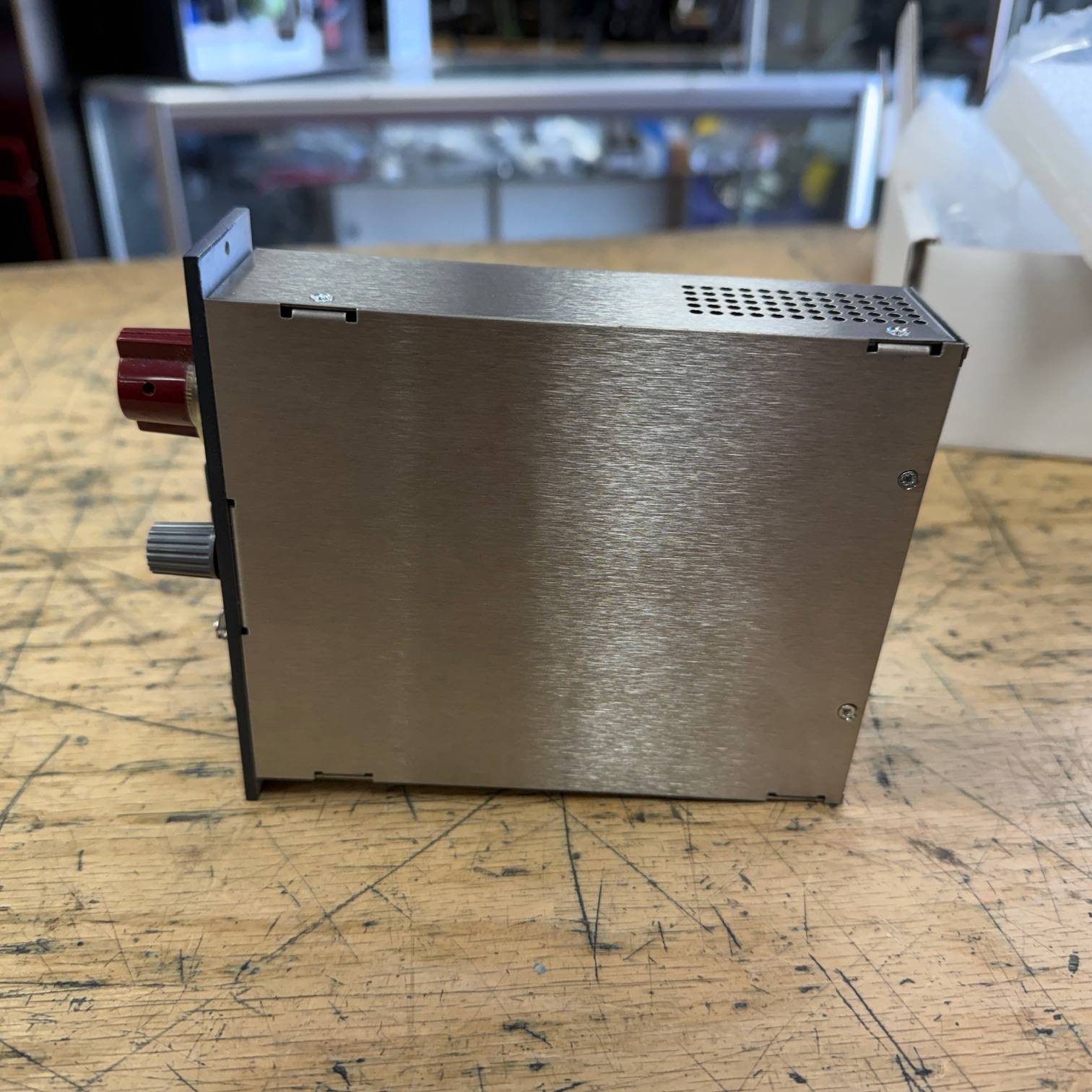

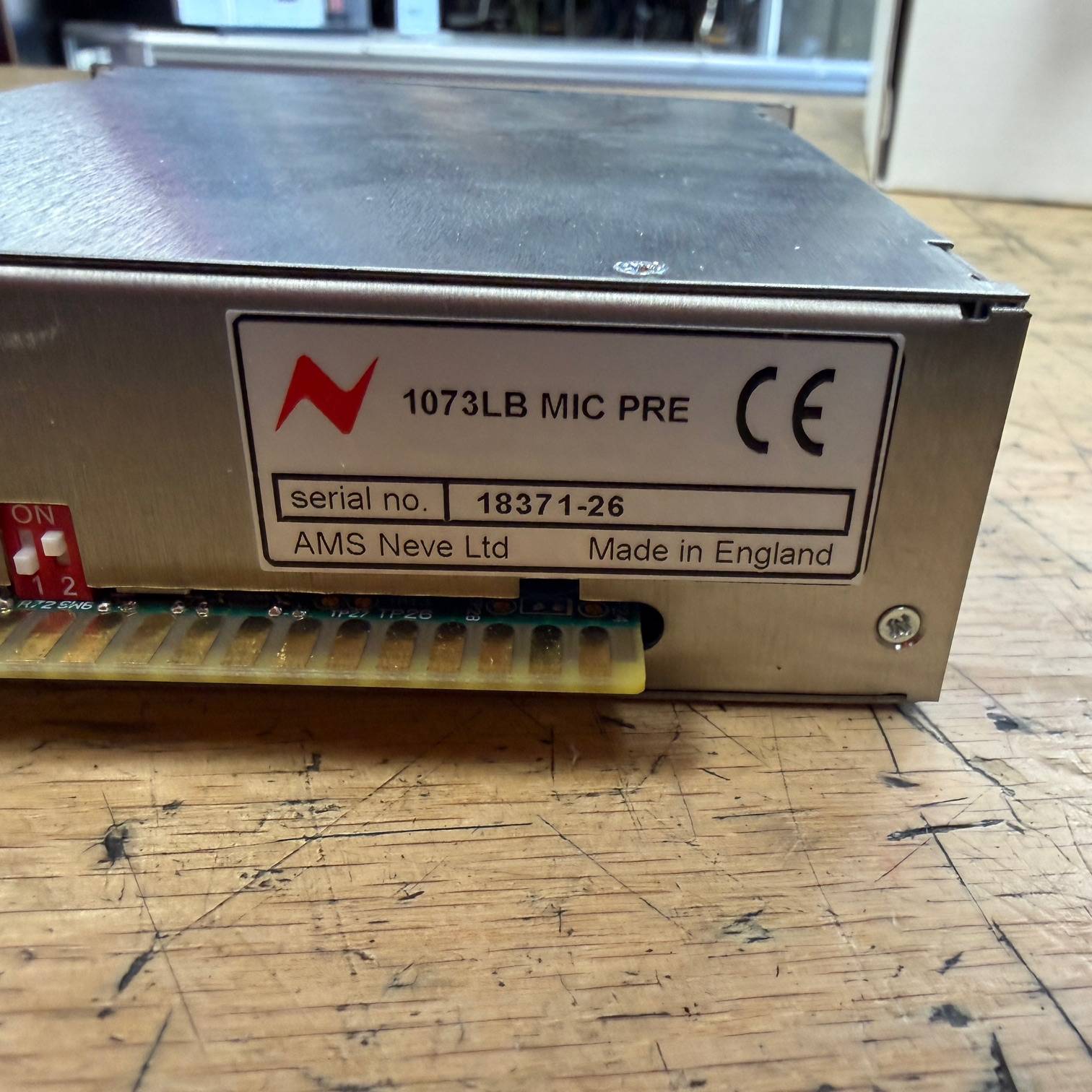

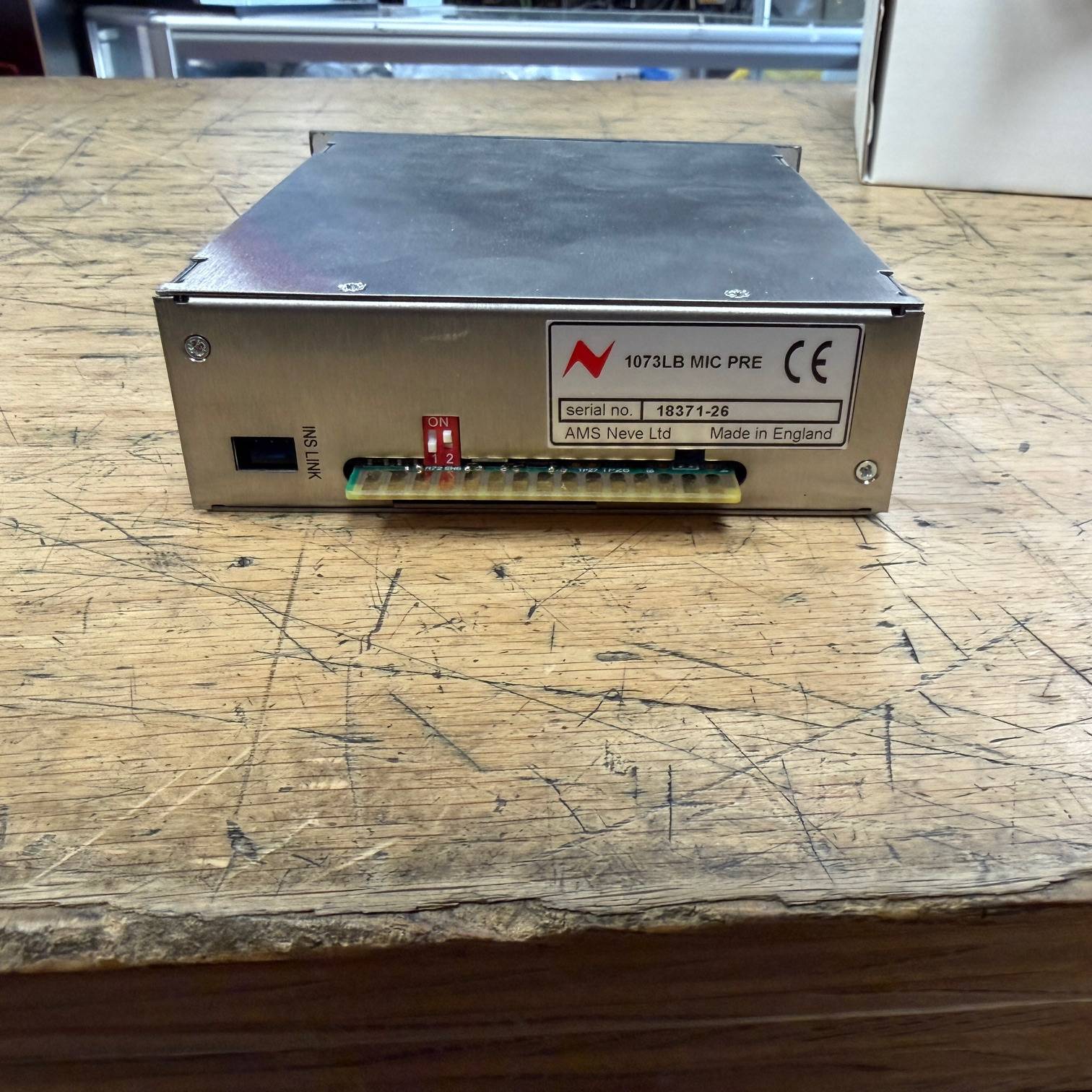

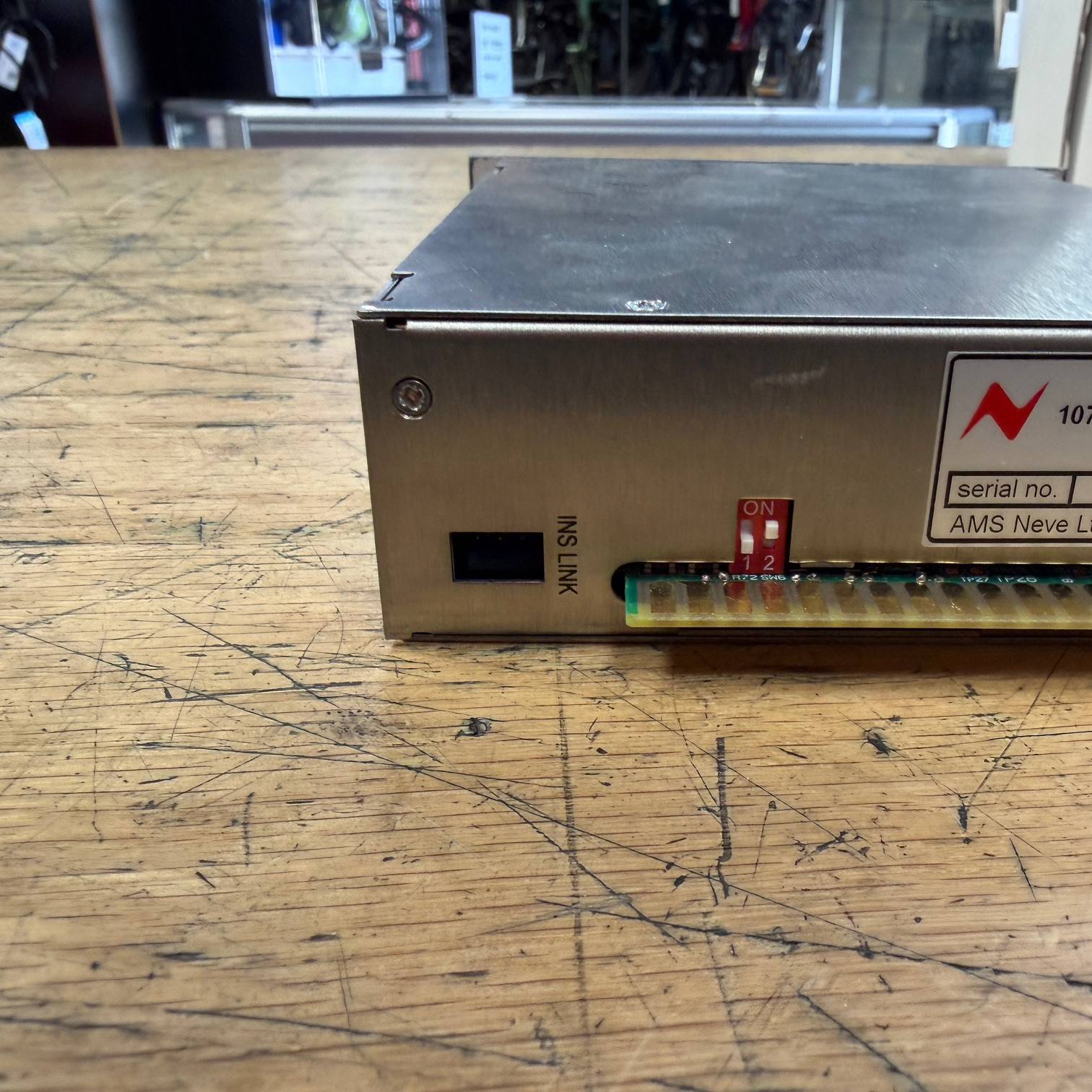

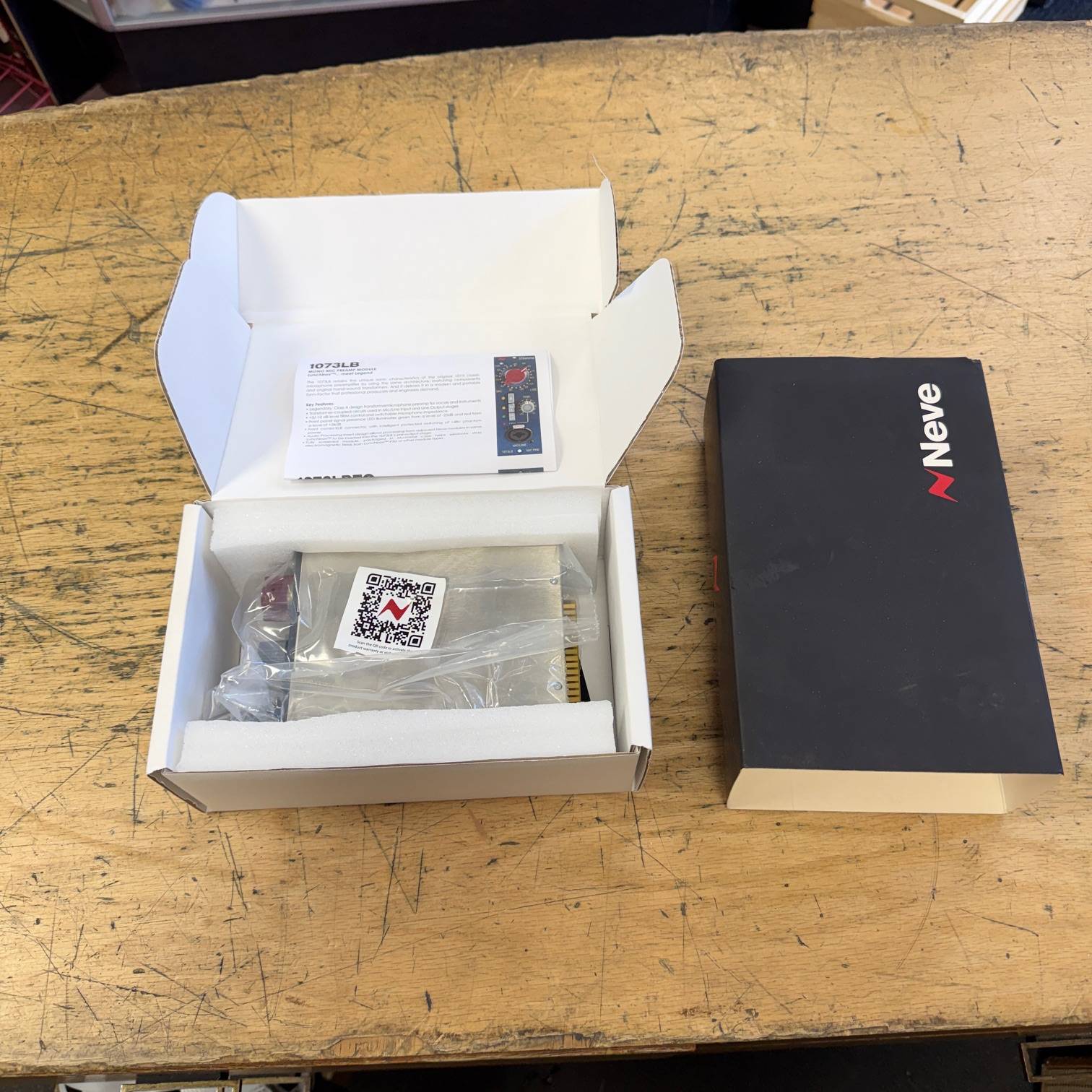

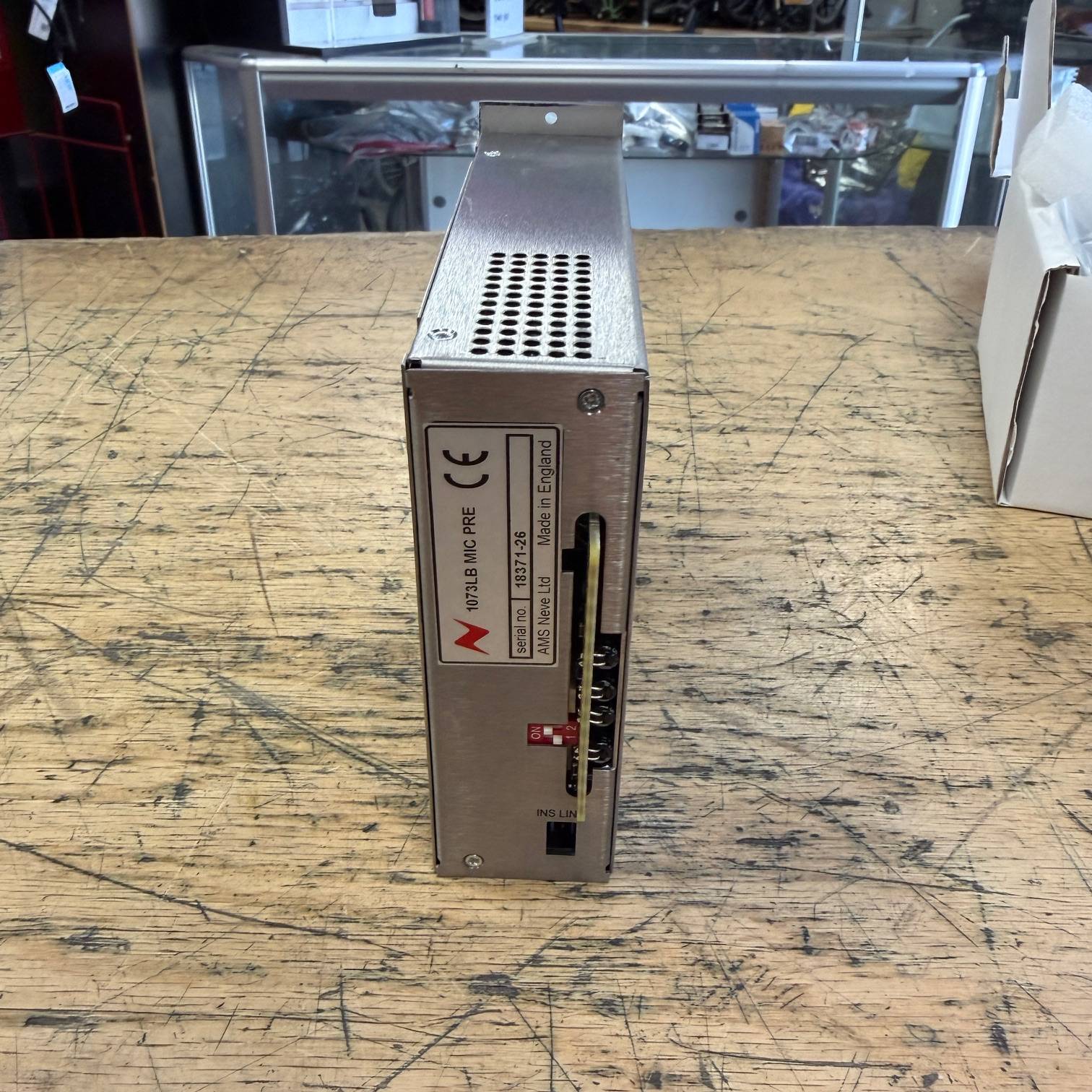

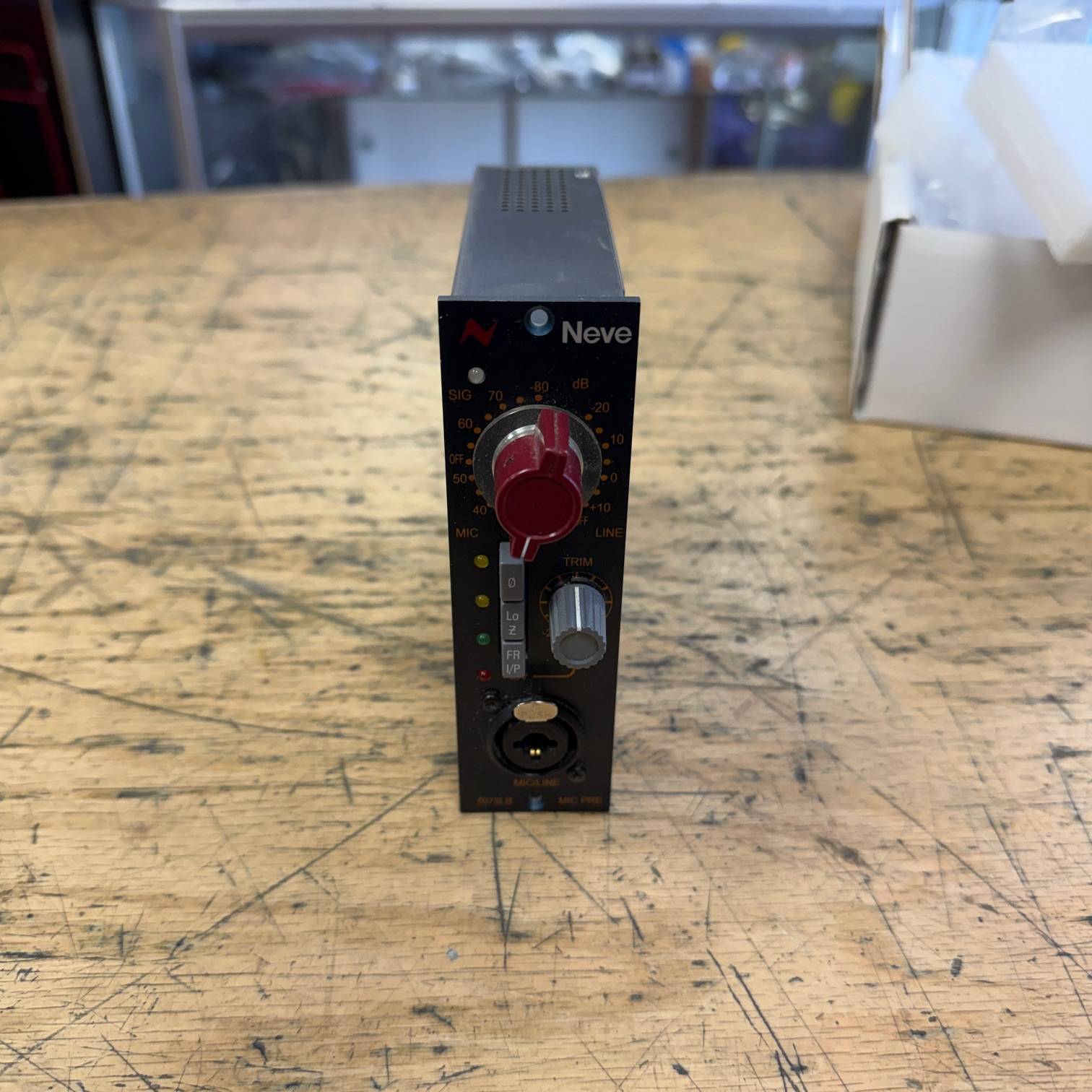

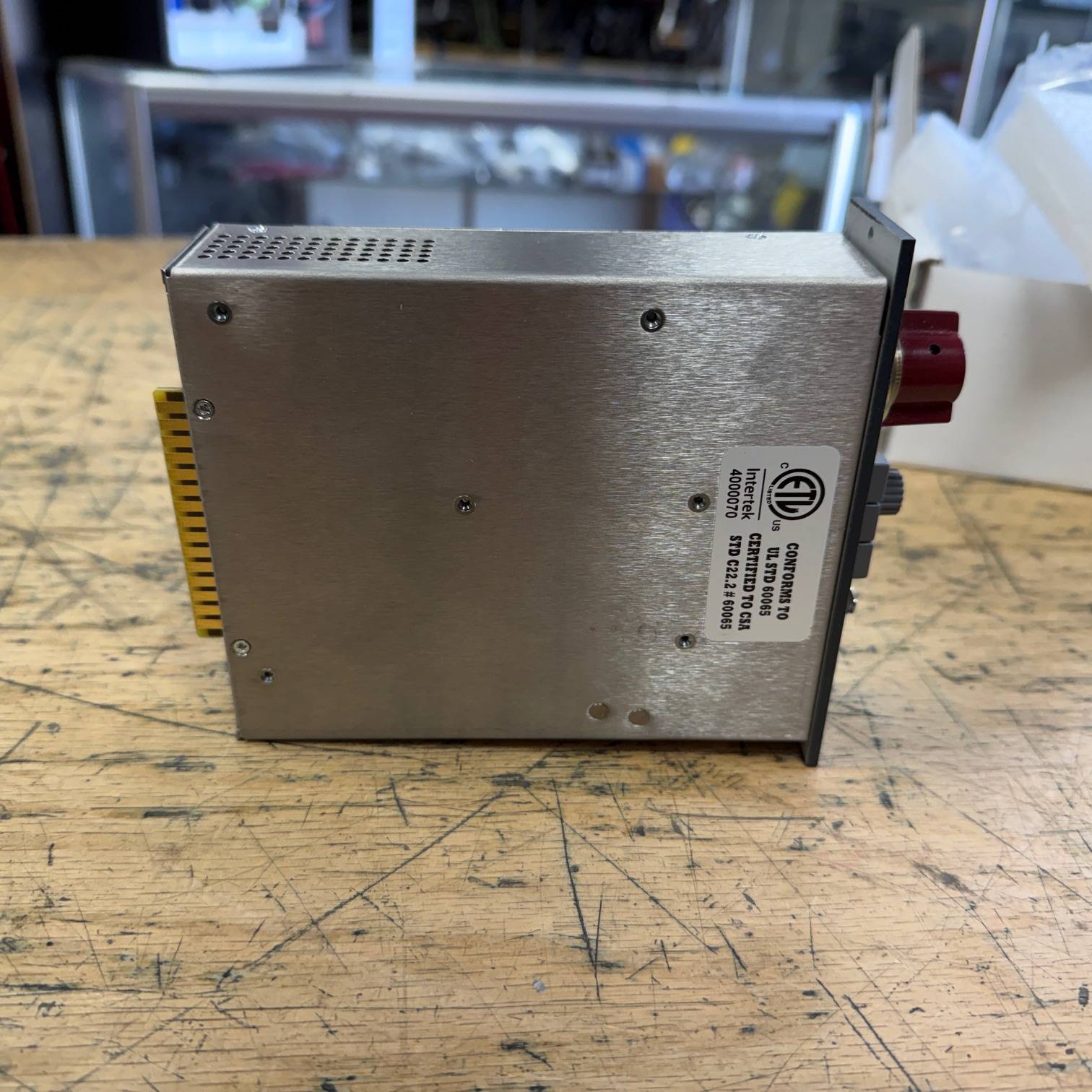

Up for sale is a used Neve 1073LB 500 Series Mono Microphone Preamp. This one was tested here in our shop and works as it should. It is in very good cosmetic condition and comes in its original box. Check out the pictures, or come see it in person at Metro Gnome Music.
500 Series Mic/Line Preamp Module with 80dB of Gain, Neve Marinair Transformers, Gain and Trim Controls, 48V Phantom Power, Audio Processing Insert Feature, and Polarity Reverse
AMS Neve 1073LB 500 Series Microphone Preamp Module Features:
- Classic Neve transformer-balanced Class A Mic/Line preamp
- Proprietary Neve Marinair transformers on input and output stages
- Both Mic and Line inputs are transformer balanced and earth free
- Gain knob with Signal Presence LED; Phase reverse (180° phase) switch
- +5/-20dB level Trim control with integrated 48V phantom power on/off switch
- Polarity reverse, Impedance, and Front Input selector switches
- Front XLR/TRS combo connector with intelligent phantom power switching
- Audio Processing Insert feature allows processing from adjacent 1073 LBEQ and/or 2264ALB modules to be inserted into the 1073LB’s pre-output stage
- Line Input: Impedance 4kΩ bridging, gain -20dB to +10dB in 5dB steps
- Microphone Input: Selectable impedance (300Ω/1200Ω), gain +20dB to +80dB in 5dB steps
- Output is transformer balanced and earth free
- Distortion: <0.07%, 50Hz to 10kHz at +20dBu output
- Frequency Response: ±0.5dB, 20Hz–20kHz, -3dB at 40kHz
- Compatible 500 Series chassis with power supply and line-level I/O connectors required, not supplied
- Designed and crafted in England by AMS Neve engineers
Tech Specs
- Preamp Type: Solid State
- Number of Channels: 1
- Frequency Response: 20Hz-20kHz (±0.5dB)
- Phantom Power: Yes
- Pads: -20dB (trim)
- Polarity Switch: Yes
- Analog Inputs: 1 x XLR/1/4″ TRS combo (mic/line)
- Module Slot Size: Single
- Power Usage: +16V/120mA, -16V/110mA
- Depth: 5.75″
- Weight: 2.5 lbs.
- Manufacturer Part Number: 1073LB
